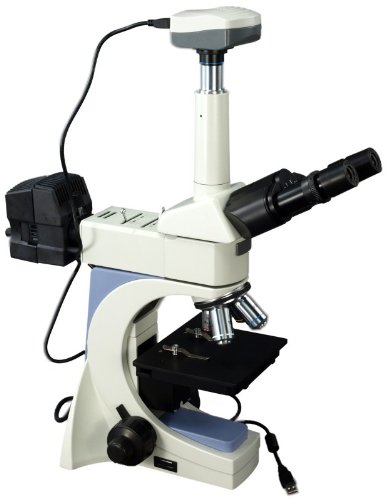

OMAX 40X-2000X Digital Infinity Metallurgical Microscope with 100X Dry Objective and 9.0MP USB Digital Camera description
User reviews for OMAX 40X-2000X Digital Infinity Metallurgical Microscope with 100X Dry Objective and 9.0MP USB Digital Camera -
OMAX 40X-2000X Digital Infinity Metallurgical Microscope with 100X Dry Objective and 9.0MP USB Digital Camera features
- Total magnification: 40x-80x-100x-200x-400x-800x-1000x-2000x; Eyepieces: wide field WF10X/20 and WF20X; Objective: infinity-corrected plan field achromatic DIN 4x, 10x, 40x(Spring, WD 2.8mm), 100x(Spring, Dry, WD 0.7mm); Head: 30 degrees inclined 360 degrees rotatable trinocular Siedentopf head; Nosepiece: revolving quadruple
- Illumination system: 6V/30W halogen bulb, position adjustable, intensity adjustable, with built-in condenser, iris aperture diaphragm, iris field diaphragm, 2 color filter slots and polarizer/analyzer slots; Condenser: built-in, spiral adjustment; Stage: triple layer mechanical stage with clips, size: 15cm - 14cm, translation range 50mm x 75mm
- Focus mechanism: Coaxial coarse and fine knobs on both sides with adjustable tension control and stop lever
- Digital camera: - true color 3488 x 2616 pixels (9.0MP) - 0.45X reduction lens to get larger field of view - Software compatible with Windows 2000/XP/Vista/Windows 7 32/64-bit - Capturing microscope images, recording live video, measuring lengths, angles, areas, editing images - USB cable included
- 5-year warranty against manufacturing defects
OMAX 40X-2000X Digital Infinity Metallurgical Microscope with 100X Dry Objective and 9.0MP USB Digital Camera best price
